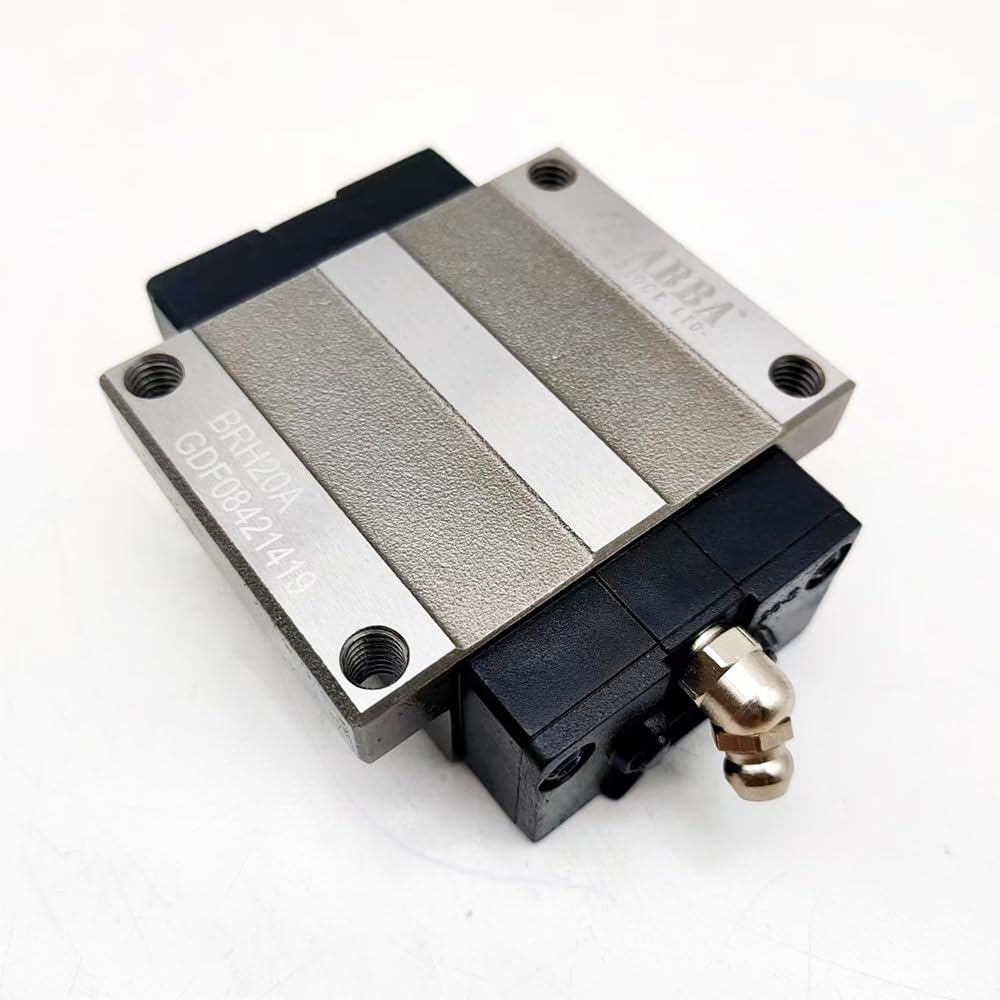

ABBA Linear Guide BRC20A0(BRH20A)

The ABBA linear guide BR self-lubricating system provides sufficient and appropriate amount of lubricating oil to the groove position of the guide rail through high oil content reservoir and optimized oil film forming design, thereby achieving environmental protection and extending the lubrication cycle. (1) Effectively increase the interval time between relubrication Each self-lubricating system extends the relubrication cycle up to 4,000 km. (2) High reliability and substitution End customers can easily install or replace by themselves; When replacing the new BR self-lubricating system, the slide does not need to be removed from the rail, and can be replaced directly on the rail. (3) Lubrication method that is beneficial to the environment Through the optimized oil film forming method, the waste of lubricating oil is reduced, thereby preventing environmental pollution. (4) High-performance lubricating oil Use lubricants that comply with ISO3448 viscosity class 680; Fully compatible with slide pre-lubricated grease - permissible temperature range -10~50 C (continuous operation) or -10~80 C (short use)

• Made by ABBA , in Taiwan
• Quantity:1pc block /lot
• We supply full series of ABBA linear guide. We can cut any length as your request.
• High-performance lubricating oil
• Effectively increase the interval time between relubrication
